Movement & Expansion Joints
Home > Terraces > PROTERRACE PC - Varnish Coated Aluminium

PROTERRACE PC - Varnish Coated Aluminium

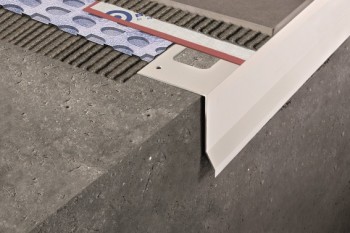

 PROTERRACE PC is a perimeter profile in varnished aluminium designed to protect the screed on terraces and balconies and to allow a correct water discharge. The profile is equipped with a punched flange that ensures its fixing to the support. The flange is also provided with small holes that allow the momentary fixing of the profile with nails. To reach a right connection between profile and the waterproofing system it’s needed to use PROBAND 150 with PROBAND KOLL/AB. The product is also available on request with a SPECIAL SEASIDE PRETREATMENT which increases its resistance to corrosion when installed at sea front environments.The product is also available on request in BENDABLE VERSION.

3D VIEW means that you can view product in 3D (in a pop up window) » click to install 3D View Plugin. Click the product images below left to view.
GINC 55AL...1 Pcs
JOINTS

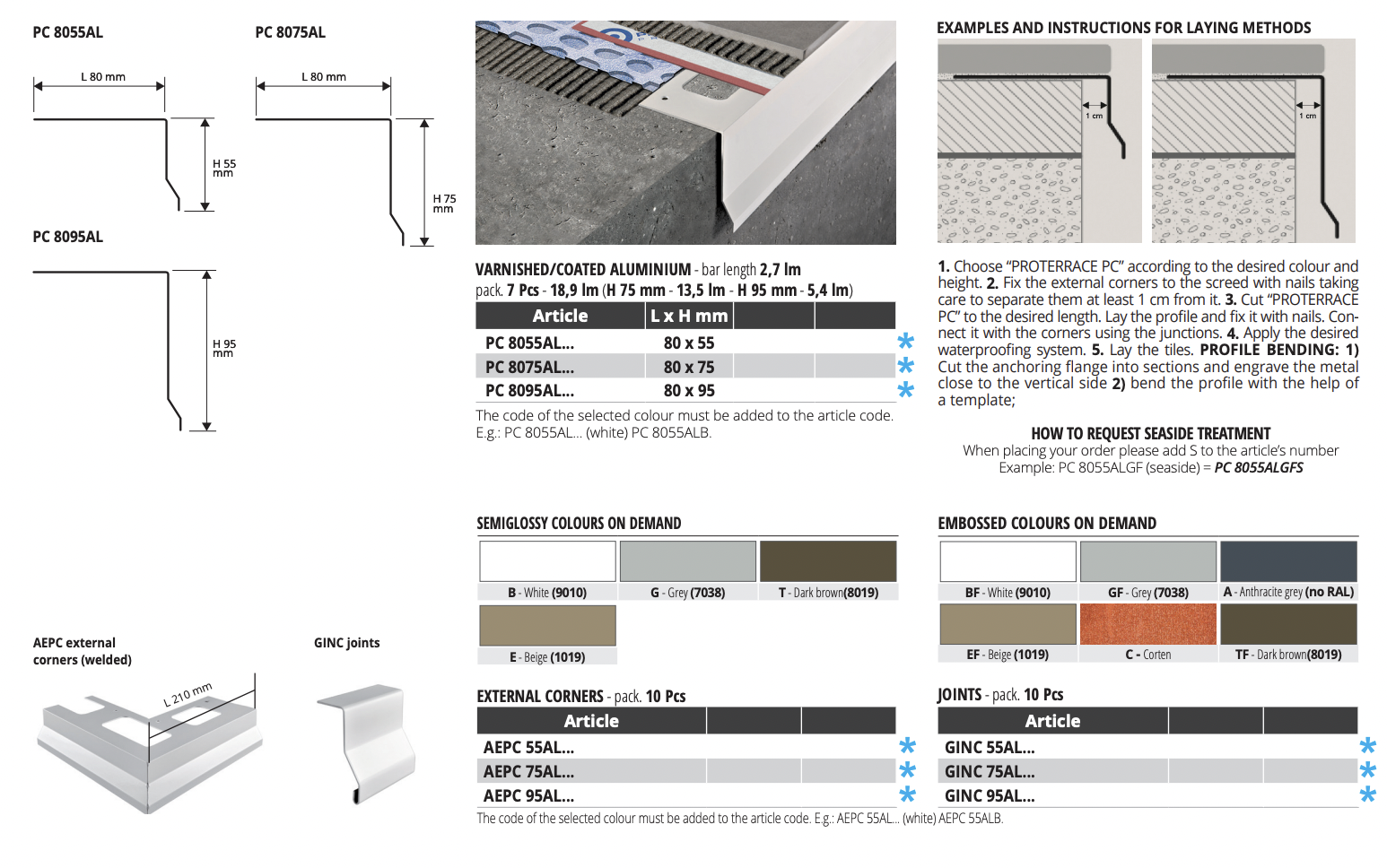

PROTERRACE PC varnished/coated aluminium is a range of edging profiles for finishing and protecting the concrete front edges of terraces and balconies. The profile has been designed with a drainage corner to protect the screed. Placing it under the waterproofing membrane, it acts as a drip moulding. It can be laid flush with or detached from the screed according to whether the tiles are laid flush with or protruding from the screed. Available in 3 with standard punched base (width 80 mm) and heights 55, 75 and 95 mm. Prewelded outside and corner joints as well as corner linking elements also available to join the profile longitudinally.



Dimension: Single / Pack 10 Pieces

Click to view product

Pack Size

Colour

Our Price
AUD$ 21.39
(AUD$ 19.45 ex GST)

Quantity

AEPC 55AL...1 Pcs
EXTERNAL CORNERS

PROTERRACE PC varnished/coated aluminium is a range of edging profiles for finishing and protecting the concrete front edges of terraces and balconies. The profile has been designed with a drainage corner to protect the screed. Placing it under the waterproofing membrane, it acts as a drip moulding. It can be laid flush with or detached from the screed according to whether the tiles are laid flush with or protruding from the screed. Available in 3 with standard punched base (width 80 mm) and heights 55, 75 and 95 mm. Prewelded outside and corner joints as well as corner linking elements also available to join the profile longitudinally.


Dimension: Single / Pack 10 Pieces

Click to view product

Pack Size

Colour

Our Price
AUD$ 110.67
(AUD$ 100.61 ex GST)

Quantity

PC 8055AL...1 Pcs
VARNISHED/COATED ALUMINIUM

PROTERRACE PC varnished/coated aluminium is a range of edging profiles for finishing and protecting the concrete front edges of terraces and balconies. The profile has been designed with a drainage corner to protect the screed. Placing it under the waterproofing membrane, it acts as a drip moulding. It can be laid flush with or detached from the screed according to whether the tiles are laid flush with or protruding from the screed. Available in 3 with standard punched base (width 80 mm) and heights 55, 75 and 95 mm. Prewelded outside and corner joints as well as corner linking elements also available to join the profile longitudinally.


Dimension: bar length 2,7 lm pack. 7 Pcs - 18,9 lm (H 75 mm - 13,5 lm - H 95 mm - 5,4 lm)

Click to view product

Pack Size

Colour

Our Price
AUD$ 194.91
(AUD$ 177.19 ex GST)

Quantity
