Movement & Expansion Joints
Home > Terraces > PROTERRACE PC - Polished Stainless Steel

PROTERRACE PC - Polished Stainless Steel

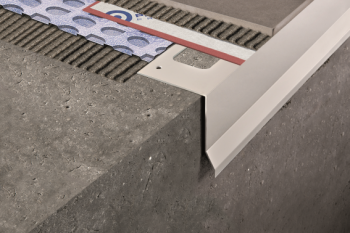

PROTERRACE PC is a perimeter profile in polished stainless steel inox aisi 304/1.4301-V2A designed to protect the screed on terraces and balconies and to allow a correct water discharge. The profile is equipped with a punched flange that ensures its fixing to the support. The flange is also provided with small holes that allow the momentary fixing of the profile with nails. To reach a right connection between profile and the waterproofing system it’s needed to use PROBAND 150 with PROBAND KOLL/AB. The product is also available on request in BENDABLE VERSION.

3D VIEW means that you can view product in 3D (in a pop up window) » click to install 3D View Plugin. Click the product images below left to view.
PC 8055AC - 1 Pcs
POLISHED STAINLESS STEEL AISI 304/1.4301-V2A with protective film

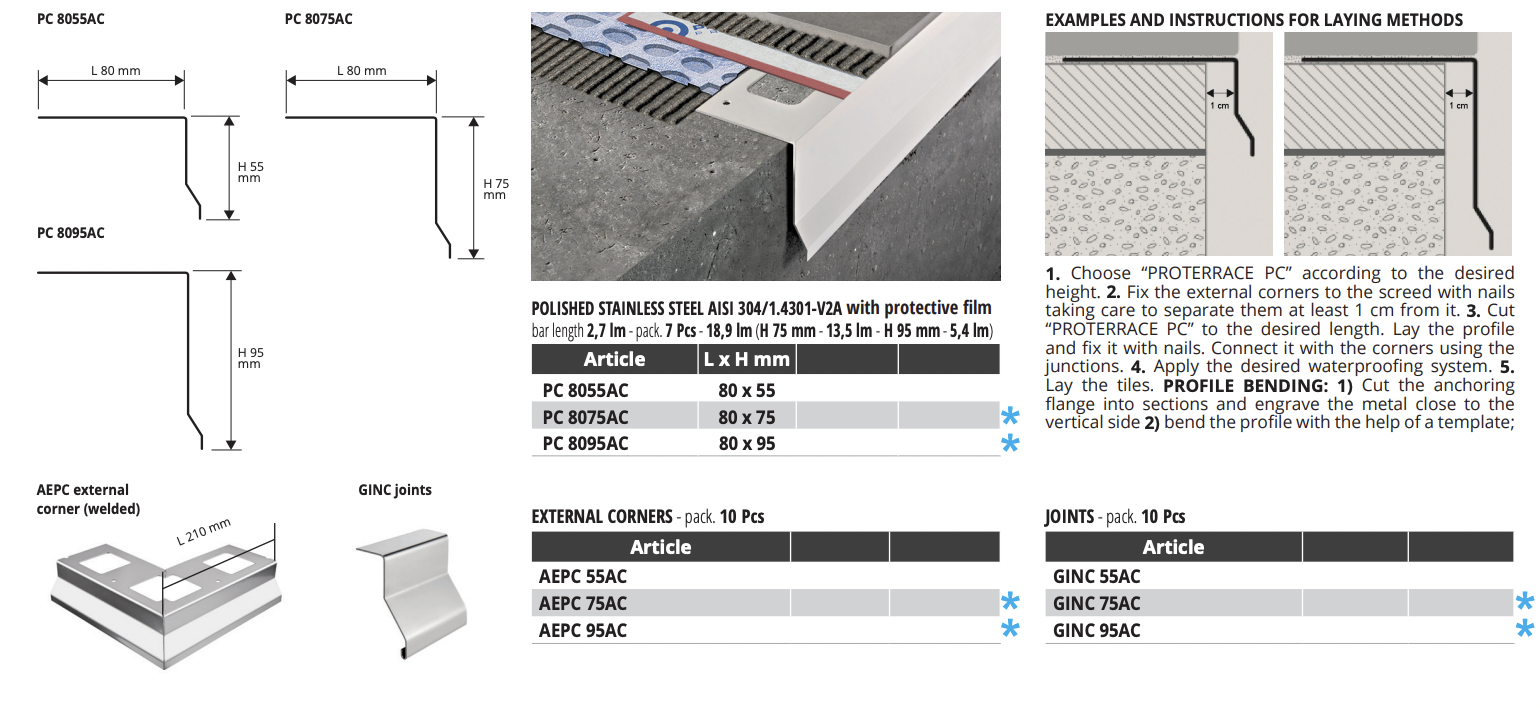

PROTERRACE PC in stainless steel AISI 304/1.430-V2A is a range of edging profiles for finishing and protecting the concrete front edges of terraces and balconies. The profile has been designed with a drainage corner to protect the screed. Placing it under the waterproofing membrane, it acts as a drip moulding. It can be laid flush with or detached from the screed according to whether the tiles are laid flush with or protruding from the screed. Available in 3 with standard punched base (width 80 mm) and heights 55, 75 and 95 mm. Prewelded outside and corner joints as well as corner linking elements also available to join the profile longitudinally. SUITABLE FOR USE IN CONTACT WITH FOODSTUFFS



Dimension: bar length 2,7 lm - pack. 7 Pcs - 18,9 lm (H 75 mm - 13,5 lm - H 95 mm - 5,4 lm)

Click to view product

Pack Size

Colour

Our Price
AUD$ 309.30
(AUD$ 281.18 ex GST)

Quantity

AEPC 55AC 1 Pcs
EXTERNAL CORNERS

PROTERRACE PC in stainless steel AISI 304/1.430-V2A is a range of edging profiles for finishing and protecting the concrete front edges of terraces and balconies. The profile has been designed with a drainage corner to protect the screed. Placing it under the waterproofing membrane, it acts as a drip moulding. It can be laid flush with or detached from the screed according to whether the tiles are laid flush with or protruding from the screed. Available in 3 with standard punched base (width 80 mm) and heights 55, 75 and 95 mm. Prewelded outside and corner joints as well as corner linking elements also available to join the profile longitudinally. SUITABLE FOR USE IN CONTACT WITH FOODSTUFFS


Dimension: Pack 10 Pieces

Click to view product

Pack Size

Colour

Our Price
AUD$ 192.30
(AUD$ 174.82 ex GST)

Quantity

GINC 55AC - 1 Pcs
JOINTS

PROTERRACE PC in stainless steel AISI 304/1.430-V2A is a range of edging profiles for finishing and protecting the concrete front edges of terraces and balconies. The profile has been designed with a drainage corner to protect the screed. Placing it under the waterproofing membrane, it acts as a drip moulding. It can be laid flush with or detached from the screed according to whether the tiles are laid flush with or protruding from the screed. Available in 3 with standard punched base (width 80 mm) and heights 55, 75 and 95 mm. Prewelded outside and corner joints as well as corner linking elements also available to join the profile longitudinally. SUITABLE FOR USE IN CONTACT WITH FOODSTUFFS


Dimension: Single / Pack 10 Pieces

Click to view product

Pack Size

Colour

Our Price
AUD$ 26.73
(AUD$ 24.30 ex GST)

Quantity
