Movement & Expansion Joints
Home > Steps > Prostair Botton / Strip

Prostair Botton / Strip



3D VIEW means that you can view product in 3D (in a pop up window) » click to install 3D View Plugin. Click the product images below left to view.

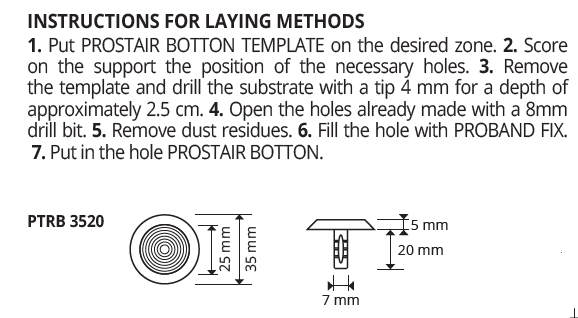

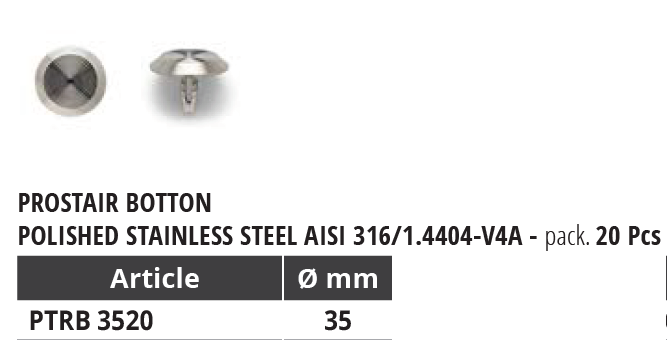

PTRB 3520
POLISHED, SATIN FINISH STAINLESS STEEL AISI 316/1.4404-V4A

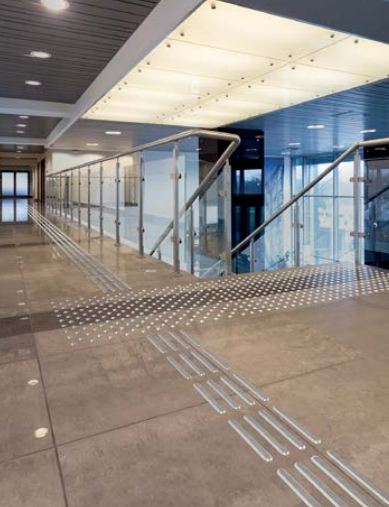

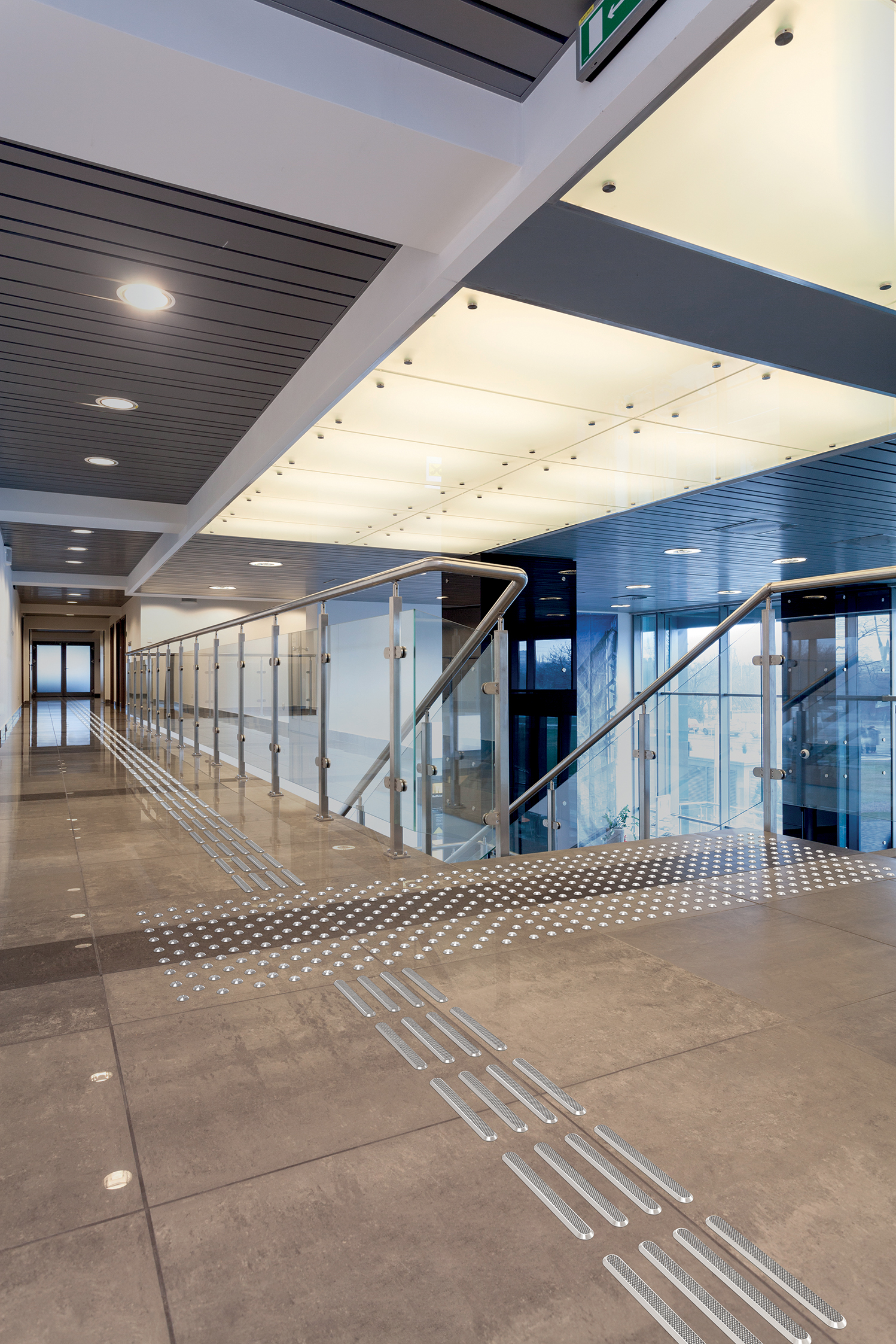

Tactile no-slip button/strip made in stainless steel AISI 316/1.4401-V4A. It has the function to realize the signaling lanes to the floor, and warning stairs, able to guide the blind and visually impaired. PROSTAIR BOTTON is available with a diameter of 3,5 cm, thickness of 5 mm and it is provided with a stem, 2 cm high, for its fastening. PROSTAIR BOTTON STRIP is available with a length of 28.5 cm, a width of 3.5 cm and a thickness of 5mm and is provided with 3 stems, 2 cm high, for its fastening.

DATA SHEET









Dimension: POLISHED STAINLESS STEEL AISI 316/1.4404-V4A - pack. 20 Pcs

Click to view product

Pack Size

Our Price
AUD$ 18.07
(AUD$ 16.43 ex GST)

Quantity

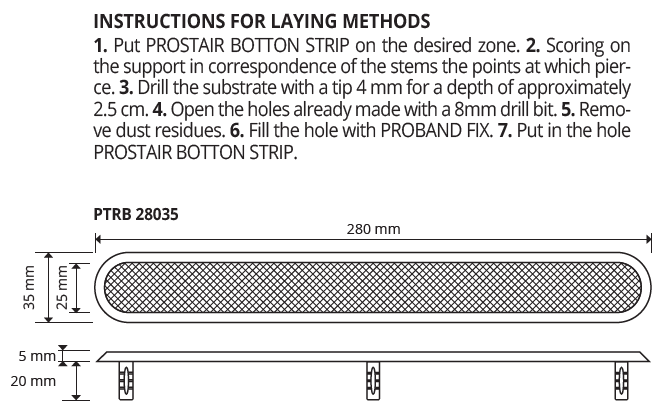

PTRB 28035

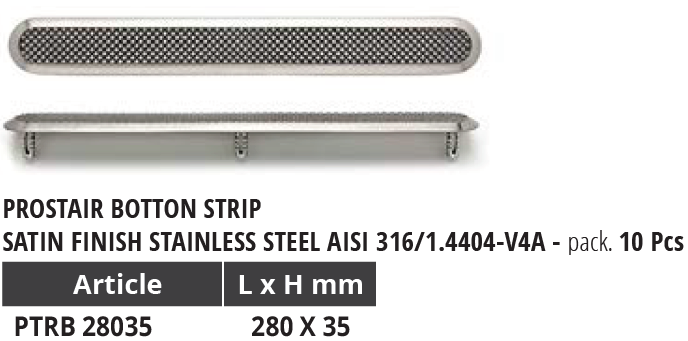

PROSTAIR BOTTON STRIP





Dimension: SATIN FINISH STAINLESS STEEL AISI 316/1.4404-V4A - pack. 10 Pcs

Click to view product

Pack Size

Our Price
AUD$ 105.69
(AUD$ 96.08 ex GST)

Quantity

PTRTEM
Prostair Botton Template for ProStair Botton

PROSTAIR BOTTON TEMPLATE is a mold, made in zinc-plated steel, which allows to score the points where to drilling for the mounting  of PROSTAIR BOTTONN. PROSTAIR BOTTON TEMPLATE has A Size of 30 x 44.5 cm and is Equipped with 48 holes of a diameter 4mm. Provided with circular joints which can be connected to other molds.



Dimension: ZINC-PLATED STEEL pack. 4 Pcs

Click to view product

Pack Size

Our Price
AUD$ 545.83
(AUD$ 496.21 ex GST)

Quantity
