Movement & Expansion Joints
Home > Movement Joints > Proplate Fix - Flat and Angle Profile in Vinyl Resin (PVC)

Proplate Fix - Flat and Angle Profile in Vinyl Resin (PVC)

 VINYL RESIN (PVC)
PROPLATE FIX is a range of flat joint-cover profiles to cover structural movements (contraction due to flexural or compressive stress) of two different load-bearing structures. PROPLATE FIX made in rigid PVC is recommended for walls and facades and for ceilings. Available upon request with stainless steel fixing clips (5 pcs. for vertical/façade use 10 pcs. for horizontal/floor use), corner profiles are also available.

3D VIEW means that you can view product in 3D (in a pop up window) » click to install 3D View Plugin. Click the product images below left to view.

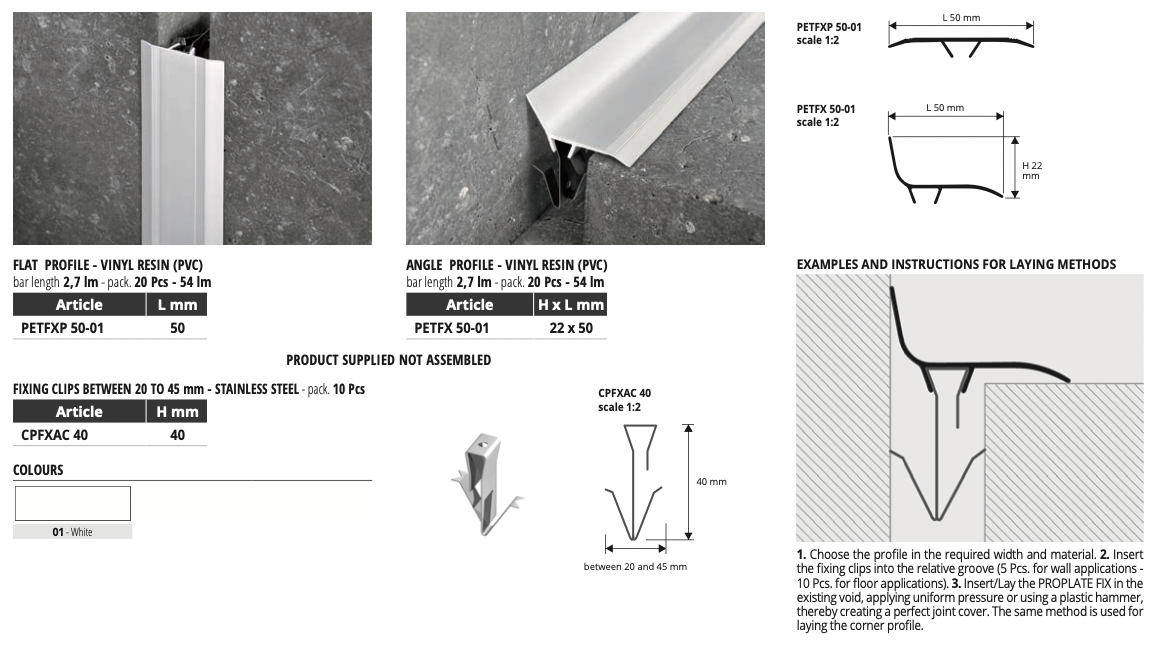

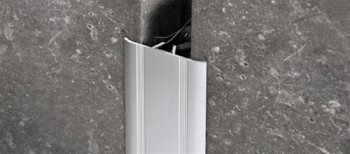

PETFXP 50-01 50mm - 1 Pcs
FLAT PROFILE - VINYL RESIN (PVC)

PROPLATE FIX is a range of flat joint-cover profiles to cover structural movements (contraction due to flexural or compressive stress) of two different load-bearing structures.
PROPLATE FIX made in rigid PVC is recommended for walls and facades and for ceilings. Available upon request with stainless steel fixing clips (5 Pcs. for vertical/façade use 10 Pcs. for horizontal/floor use); corner profiles are also available.


Dimension: bar length 2,7 lm - pack. 20 Pcs - 54 lm

Click to view product

Pack Size

Colour

Our Price
AUD$ 91.60
(AUD$ 83.27 ex GST)

Quantity

PETFX 50-01 (22 x 50) - 1 Pcs
ANGLE PROFILE - VINYL RESIN (PVC)

PROPLATE FIX is a range of flat joint-cover profiles to cover structural movements (contraction due to flexural or compressive stress) of two different load-bearing structures.
PROPLATE FIX made in rigid PVC is recommended for walls and facades and for ceilings. Available upon request with stainless steel fixing clips (5 Pcs. for vertical/façade use 10 Pcs. for horizontal/floor use); corner profiles are also available.


Dimension: bar length 2,7 lm - pack. 20 Pcs - 54 lm

Click to view product

Pack Size

Colour

Our Price
AUD$ 94.69
(AUD$ 86.08 ex GST)

Quantity

CPFXAC 40
FIXING CLIPS BETWEEN 20 TO 45 mm - STAINLESS STEEL

PROPLATE FIX is a range of flat joint-cover profiles to cover structural movements (contraction due to flexural or compressive stress) of two different load-bearing structures.
PROPLATE FIX made in rigid PVC is recommended for walls and facades and for ceilings. Available upon request with stainless steel fixing clips (5 Pcs. for vertical/façade use 10 Pcs. for horizontal/floor use); corner profiles are also available.


Dimension: Pack - 1 Pcs / 10 Pcs

Click to view product

Pack Size

Colour

Our Price
AUD$ 103.34
(AUD$ 93.95 ex GST)

Quantity
