Movement & Expansion Joints
Home > Movement Joints > Proplate Fix Aluminium

Proplate Fix Aluminium

 ALUMINIUM

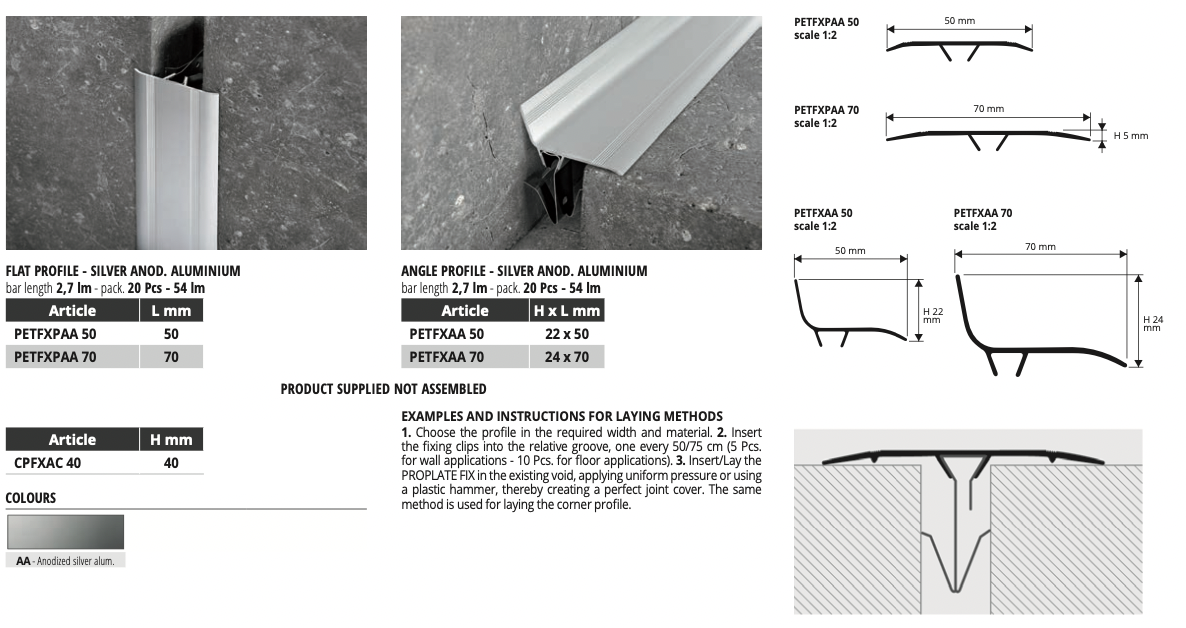

PROPLATE FIX is a range of flat joint-cover profiles to cover structural movements (contraction due to flexural or compressive stress) of two different load-bearing structures. PROPLATE FIX made in silver anodised aluminium is recommended for environments with intense pedestrian and vehicular traffic. Available upon request with stainless steel fixing clips (5 pcs. for vertical/façade use 10 pcs. for horizontal/floor use), corner profiles are also available.

3D VIEW means that you can view product in 3D (in a pop up window) » click to install 3D View Plugin. Click the product images below left to view.

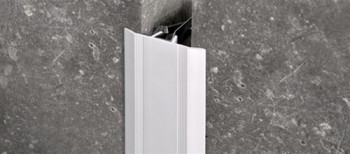

PETFXPAA 50 - 1 Pcs
FLAT PROFILE - SILVER ANOD. ALUMINIUM

PROPLATE FIX is a range of flat joint-cover profiles to cover structural movements (contraction due to flexural or compressive stress) of two different load-bearing structures.
PROPLATE FIX made in silver anodized aluminium is recommended for environments with intense pedestrian and vehicular traffic. Available upon request with stainless steel fixing clips (5 Pcs. for vertical/façade use 10 Pcs. for horizontal/floor use); corner profiles are also available.


Dimension: bar length 2,7 lm - pack. 20 Pcs - 54 lm

Click to view product

Pack Size

Colour

Our Price
AUD$ 137.71
(AUD$ 125.19 ex GST)

Quantity

PETFXAA 50
ANGLE PROFILE - SILVER ANOD. ALUMINIUM

PROPLATE FIX is a range of flat joint-cover profiles to cover structural movements (contraction due to flexural or compressive stress) of two different load-bearing structures.

PROPLATE FIX made in silver anodized aluminium is recommended for environments with intense pedestrian and vehicular traffic. Available upon request with stainless steel fixing clips (5 Pcs. for vertical/façade use 10 Pcs. for horizontal/floor use); corner profiles are also available.

Dimension: bar length 2,7 lm - pack. 20 Pcs - 54 lm

Click to view product

Pack Size

Colour

Our Price
AUD$ 219.64
(AUD$ 199.67 ex GST)

Quantity

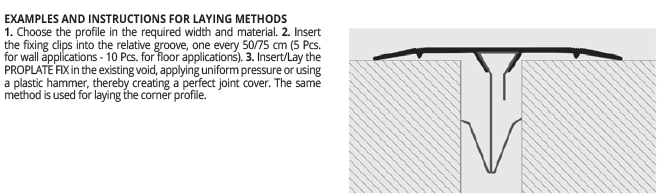

CPPFXAC 40 - 1 Pcs






Dimension: Height 40 mm Pack 10

Click to view product

Pack Size

Our Price
AUD$ 67.73
(AUD$ 61.57 ex GST)

Quantity
