Movement & Expansion Joints
Home > Movement Joints > GNS 75 - 18 / 50 / 80

GNS 75 - 18 / 50 / 80

NATURAL ALUMINIUM

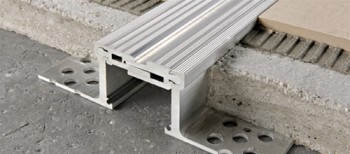

STRUCTURAL JOINT GNS 75...18/70/80 is in good quality natural aluminium with neoprene in the lower central part and NATURAL ALUMINIUM another aluminium profile in the upper visible part. It withstands heavy loads and frequent pedestrian traffic. Bar length 3 m, visible head width 30 mm

A structural joint in natural aluminium. Withstands frequent traffic and heavy loads.


3D VIEW means that you can view product in 3D (in a pop up window) » click to install 3D View Plugin. Click the product images below left to view.
GNS 7518 - 1 Pcs
NATURAL ALUMINIUM

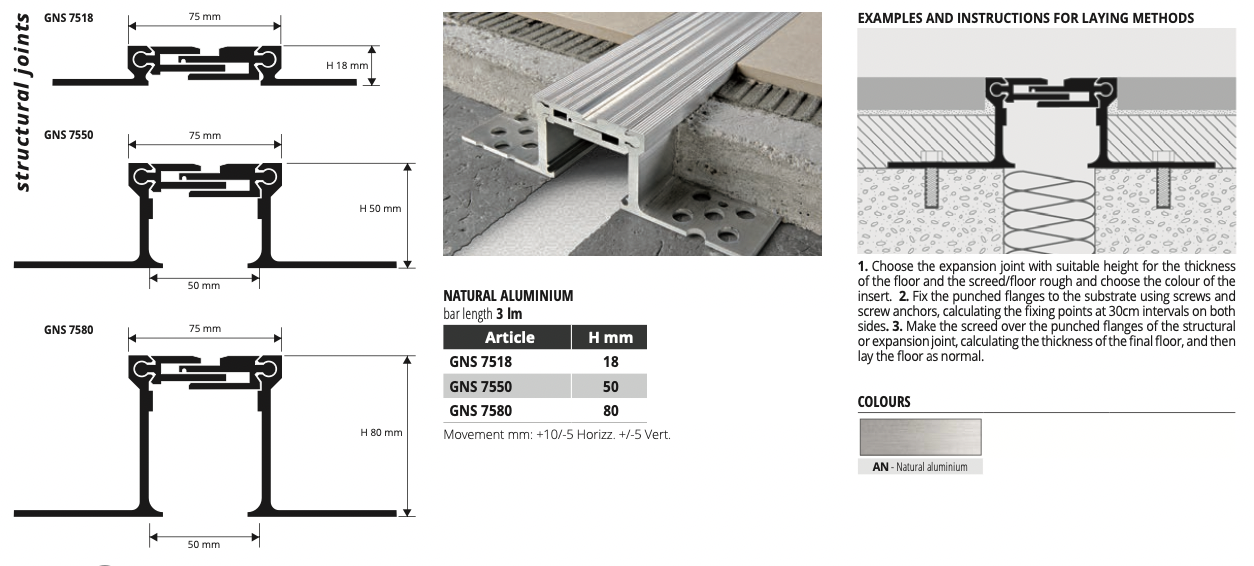

Structural joint GNS 75 is in good quality natural aluminium with neoprene in the lower central part and another aluminium profile in the upper visible part. It withstands heavy loads and frequent pedestrian traffic. Bar length 3 m, visible head width 75 mm. It withstands forklift trucks with rubber tyre and transpallets to a maximum total load of 6,5 kgs/mmq.


Dimension: bar length 3 lm

Click to view product

Pack Size

Colour

Our Price
AUD$ 1186.78
(AUD$ 1078.89 ex GST)

Quantity
