Movement & Expansion Joints
Home > Movement Joints > Mortar Laid Joints - Co-extruded Vinyl Resin

Mortar Laid Joints - Co-extruded Vinyl Resin

CO-EXTRUDED VINYL RESIN 3 colours

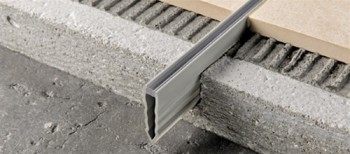

MORTAR-LAID MOVEMENT JOINTS are a range of joints in co-extruded vinyl resin with the flanges and vertical supports made in rigid synthetic vinyl resin and the elastic central part in flexible synthetic vinyl resin. The mortar-laid joints must be placed at least 0.5-1mm below the level of the ceramic tile-marble-granite floor and never above. Suitable for pedestrian traffic, they absorb compressive and slip stress. Laying modules between 16 and 30 m3 inclusive are recommended and the joint laid in line with the joints in the underlying screed. Available in various colours and heights.

An elastic movement joint in co-extruded vinyl resin, for use with mortar-laid floors, suitable for pedestrian traffic. Absorbs compressive and sliding stress.


3D VIEW means that you can view product in 3D (in a pop up window) » click to install 3D View Plugin. Click the product images below left to view.
C511...1 Pcs
CO-EXTRUDED VINYL RESIN

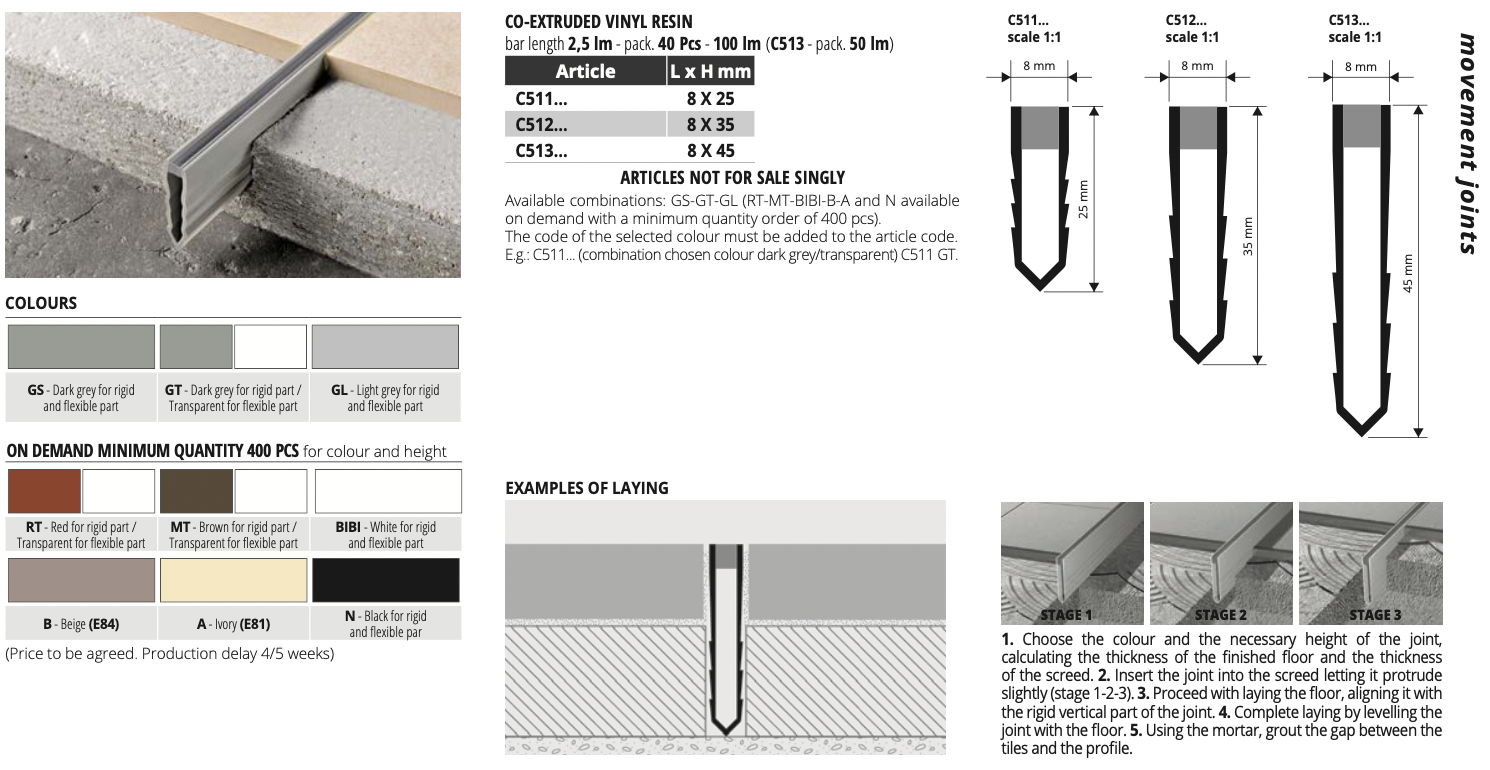

MORTAR-LAID MOVEMENT JOINTS are a range of joints in co-extruded vinyl resin with the flanges and vertical supports made in rigid synthetic vinyl resin and the elastic central part in flexible synthetic vinyl resin. The mortar- laid joints must be placed at least 0.5-1mm below the level of the ceramic tile-marble-granite floor and never above. Suitable for pedestrian traffic, they absorb compressive and slip stress.
Laying modules between 16 and 30 m3 inclusive are recommended and the joint laid in line with the joints in the underlying screed. Available in various colours and heights. Lay the joints according with the standards in force.

Dimension: bar length 2,5 lm - pack. 40 Pcs - 100 lm (C513 - pack. 50 lm)

Click to view product

Pack Size

Colour

Our Price
AUD$ 11.62
(AUD$ 10.56 ex GST)

Quantity
